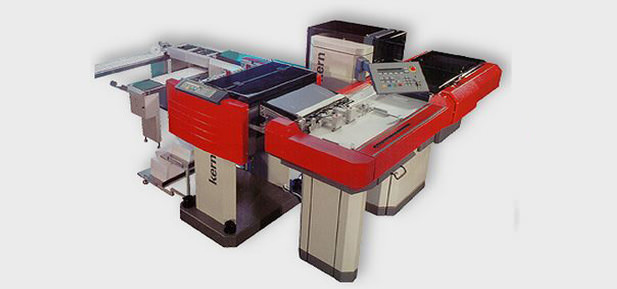

Kern 686 Inserting System

Getting the right information to the right people at the right time is the primary function of the Kern 686 Inserting System - an off-line folding and inserting system with optical mark/barcode reading for processing cut forms and enclosures from the stack.

In a single operation the Kern 686 Inserting System can cross-match, fold, insert documents and seal the envelopes with sustained high performance.

The optical mark/barcode reading system and the paper flow monitoring system ensure total, reliability and complete security during the processing of your documents.

Modular construction

The well designed, futuristic construction of the Kern 686 Inserting System range enables you to deal with special needs as they arise, and can always be expanded as requirements increase.

The Kern 686 Inserting System range includes the following options:
  • 2 folding and 3 enclosure stations
  • OMR or barcode controlled diverter modules for stacking sealed and/or unsealed envelopes
  • postcode marking unit
  • connection franking machine
  • security check bin
  • an add-an facility for checking the identity of forms from the two folding stations using OMR or barcode control
Programmable functions

The 686 Inserting System allows the operator to select from up to 20 different processing programs.

For example:

  • grouping of documents by customer
  • choice of operation from right, left or both folding stations
  • selective calling of enclosures from one, two or three insert feeding stations
  • preselectable counting of filled envelopes
Powerful, quiet and simple to use

These are the characteristics that mark the quality of the Kern 686 Inserting System. The processing speed is variable for each different preprogrammed application so as to give optimum performance. The Kern 686 Inserting System operates quietly even at high speeds and meets safe working standards. All function controls are clearly arranged an the keyboard console, thus making it a pleasure to operate the system. The Kern 686 Inserting System - a mailing system which will give you the many years of good service that all Kern systems are renowned for.

Grouping of multiple pages, and sequence control

Where your customers are to receive multiple page documents, these are identified as being for the same addressee by the computer generated control marks. This OMR control makes the Kern 686 Inserting System operation absolutely safe even with mixed single and varying multiple page documents. With multiple pages it is obviously important that the sheets are processed in exactly the same order in which they were printed, this can be ensured by printing binary sequence control marks, these can then be checked during processing to ensure the correct sequence.

Comparing identity

With an additional mark on the main form you can selectively call documents from a second folding station. If this is a personal document, e.g. payment slip, cheque, etc., its identity can be compared with the prime document to give absolute security. Do you wish to send an enclosure to each customer or only to specific ones? Either is possible. A corresponding mark an the prime document will calls an enclosure to be added to that envelope.

Contact Cass today for more information
